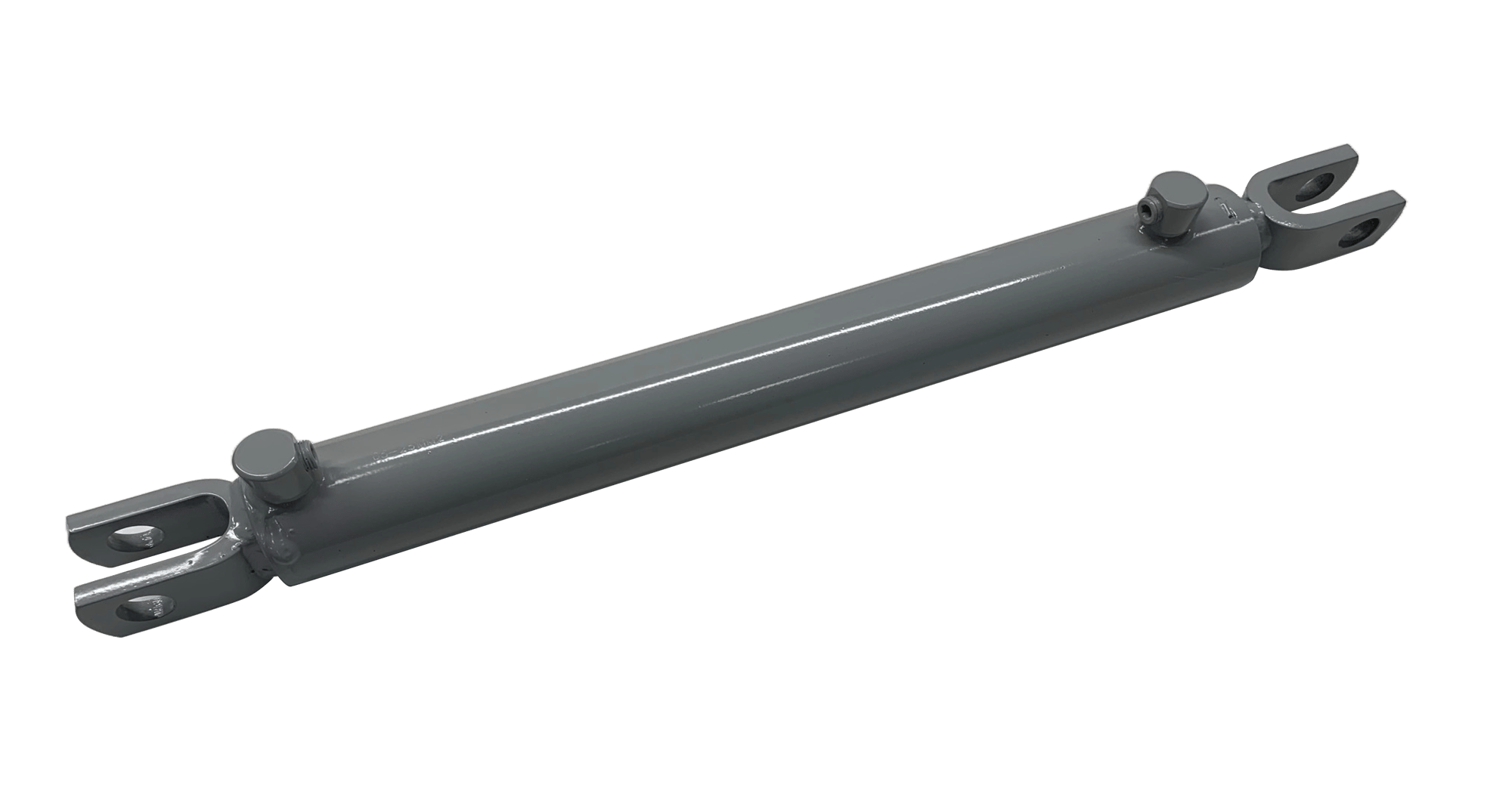

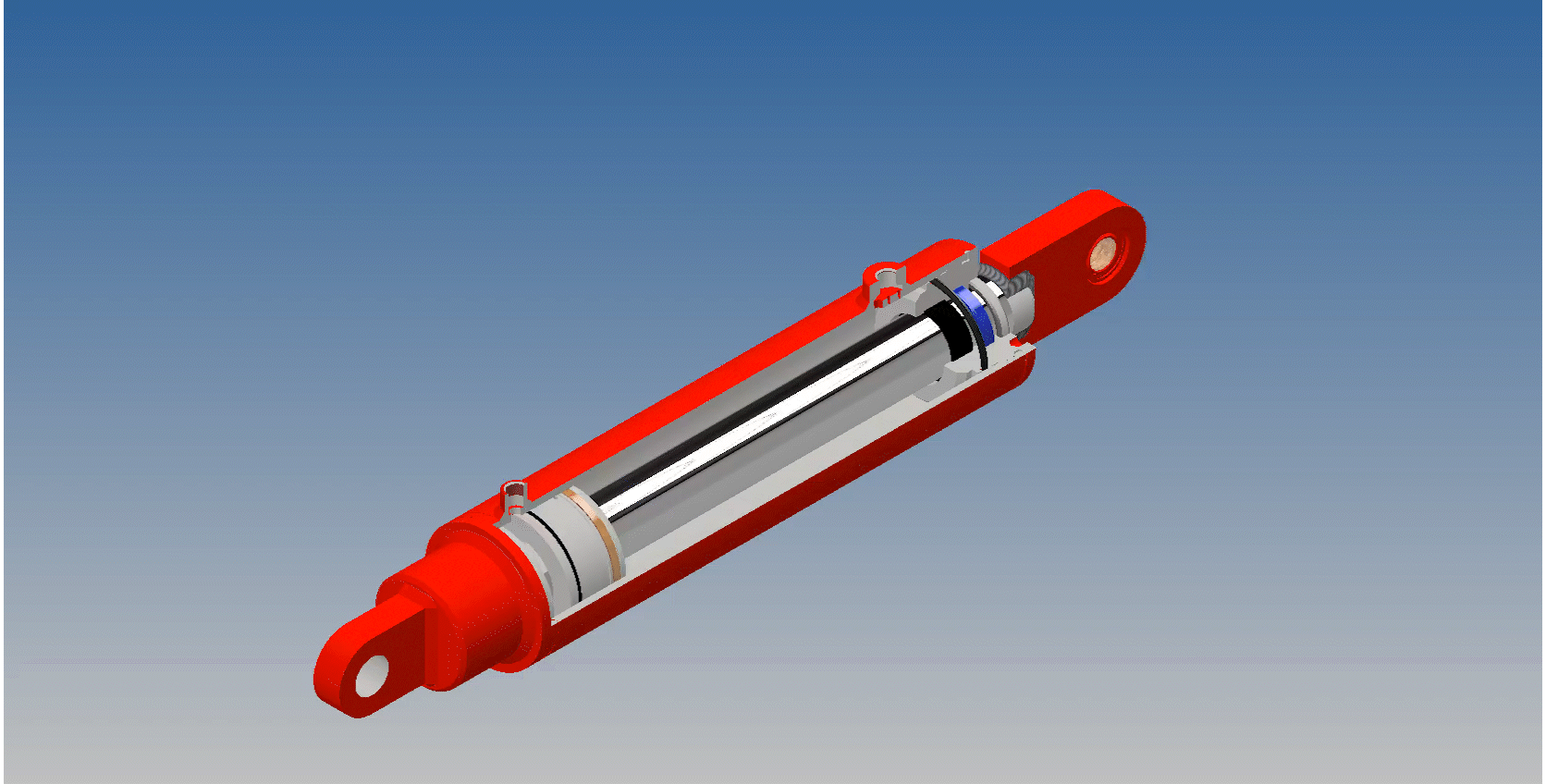

A hydraulic cylinder cushion is a mechanism integrated into the cylinder that slows down the piston’s movement at the end of its stroke. This controlled deceleration prevents sudden stops and reduces shock, vibration, and noise. It also helps protect the cylinder, machine components, and the entire hydraulic system from premature wear, ultimately extending equipment life and improving operational efficiency.

• • Fixed cushions: These are non-adjustable and provide a set level of deceleration. They are simple, cost-effective, and best for applications with consistent load conditions.
  • Adjustable cushions allow users to fine-tune the damping effect to match specific operational requirements. They are ideal for varying loads or applications needing precise control. Cushion designs may also vary, such as tapered or orifice-based designs, each offering different damping characteristics.

• • Bore size. The diameter of the cylinder bore affects the cushion’s effectiveness. Larger bores typically require more robust cushioning.
  • Rod diameter and stroke length. These impact the piston speed and force, influencing the cushion requirements.
  • Operating pressure and speed. Higher speeds or pressures demand more effective cushioning to manage the increased kinetic energy.
    It’s essential to consult with manufacturers or reference technical specifications for accurate sizing.

• • Polyurethane or rubber. Offers good flexibility and shock absorption. Best for light to moderate loads.
  • Metal components (e.g., bronze, steel). Used in high-pressure, heavy-duty applications where durability is critical.
  • Composite materials. For applications requiring a balance between strength and flexibility.
    The choice of material affects wear resistance, temperature tolerance, and compatibility with hydraulic fluids.

• Pressure rating. Ensure the cushion can handle your system's maximum pressure.
• Operating speed. High-speed applications require cushions designed to manage rapid deceleration.
• Temperature range. Consider the operating environment, as extreme temperatures can affect cushion performance.
• Mounting style and compatibility. The cushion must fit the cylinder design and mounting configuration.
• Fluid compatibility. Ensure the cushion materials are compatible with the hydraulic fluid in use.

• • Tailored cushion lengths or damping profiles for unique deceleration needs.
  • Material modifications to suit specific environments, like extreme heat or corrosive conditions.
  • Special seals or coatings for enhanced durability.
    Customization ensures optimal performance but may affect lead times and costs.

• • Construction equipment. Excavators, loaders, and cranes rely on cushions for smooth operation.
  • Manufacturing and automation. Ensures precision in processes like stamping, pressing, or material handling.
  • Agriculture. Tractors and harvesters benefit from reduced shock loads.
  • Automotive. Used in vehicle lifts, assembly lines, and testing equipment.
  • Aerospace & Defense. Cushioning helps manage forces in harsh environments and precision applications.

• • Tapered cushions offer gradual deceleration, ideal for applications needing smooth stops.
  • Orifice-based cushions control fluid flow at the end of the stroke, offering more abrupt deceleration.
    Poor cushion design or selection can lead to shock loads, system inefficiencies, or even damage to the cylinder or machine structure.

• • Mounting configurations. Ensure the cushion matches the cylinder's mount style (e.g., flange, clevis, trunnion).
  • Seal materials. Verify that cushion seals are compatible with your hydraulic fluid and temperature conditions.
  • System pressure and flow rates. The cushion must accommodate the system's performance characteristics without causing excessive backpressure.

• • Routine inspections. Check for wear, leaks, or degradation of cushion materials.
  • Fluid cleanliness. Contaminated hydraulic fluid can cause premature cushion wear.
  • Seal checks. Inspect seals for signs of leakage or cracking.
    Maintenance intervals depend on the operating conditions and frequency of use.

• • Increased noise or vibration at the end of the stroke.
  • Uneven or jerky movements during deceleration.
  • Fluid leaks around the cushion area.
  • Excessive wear or visible damage to cushion components.
    Ignoring these signs can lead to system damage or reduced efficiency.

• • Light-duty applications may see cushions last several years.
  • Heavy-duty or high-speed applications might require more frequent replacements.
    Regular maintenance and using high-quality materials can extend lifespan.
